At JYH CNC Precision Machining, we specialize in producing high-accuracy motor housing components designed for demanding industrial, automation, and robotics applications. Each part is engineered with uncompromising attention to detail — from raw material selection to precision CNC machining, advanced hard anodizing, and full QC inspection.
Our motor housings are designed to deliver maximum structural rigidity, corrosion resistance, thermal stability, and extended operational life—making them ideal for motors that operate in high-load or high-temperature environments.
Product Overview

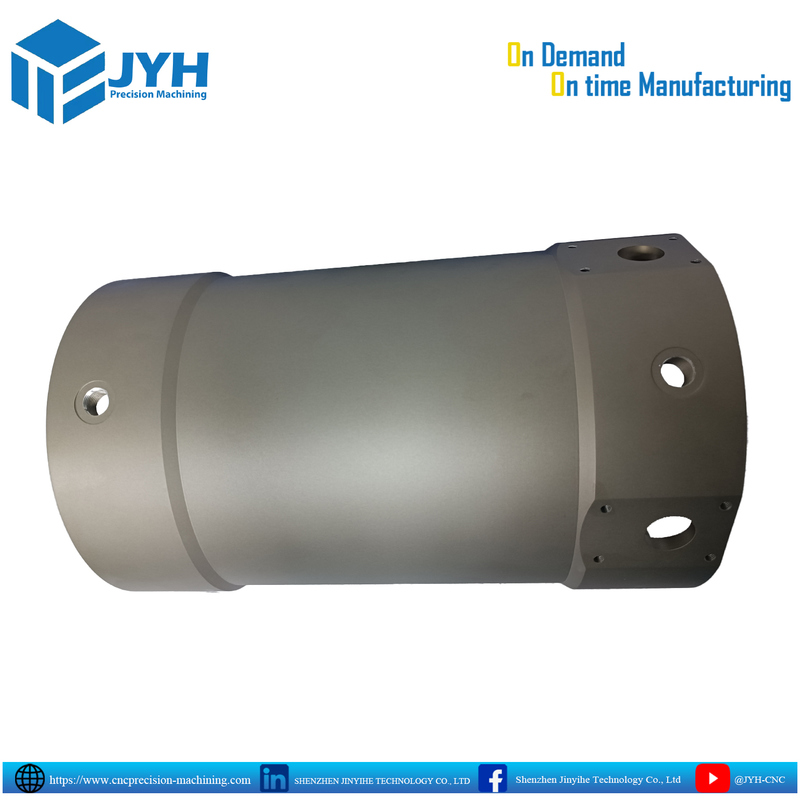

These custom-engineered aluminum motor housings are manufactured using multi-axis CNC machining, ensuring tight tolerances, excellent concentricity, and repeatable quality across every batch. The matte dark-grey finish results from a 50 µm Hard Anodized coating (MIL-A-8625 Type III), providing superior surface hardness, wear resistance, and enhanced protection against corrosion.
Key Features & Specifications
|
Feature
|
Details
|
|
Material
|
Aluminum Alloy 6082-T6 (High-strength, excellent machinability)
|
|
Manufacturing Process
|
3-Axis / 4-Axis / 5-Axis Precision CNC Machining
|
|
Surface Finish
|
Hard Anodized 50 µm (MIL-A-8625 Type III)
|
|
Color
|
Dark-grey matte industrial finish
|
|
Corrosion Resistance
|
Excellent – suitable for harsh industrial environments
|
|
Wear Protection
|
High hardness coating ensures long-term durability
|
|
Customization
|
Dimensions, tolerances, mounting holes, threads, concentricity, finishing
|
|
Applications
|
Robotics, automation, servo motors, industrial machinery, custom motor assemblies
|
Why 6082-T6 Aluminum for Motor Housings?
Aluminum 6082-T6 is commonly used in high-load structural applications. Its advantages include:
Mechanical Benefits
- High tensile strength
- Excellent strength-to-weight ratio
- Low deformation under load
- Good vibration absorption
Machining Benefits
- Clean finish after machining
- Stable during high-speed cutting
- Supports extremely tight tolerances
Corrosion & Surface Treatment Benefits
- Performs exceptionally well with Type III Hard Anodizing
- Increased surface hardness (up to 60–70 HRC equivalent)
Advanced MIL-A-8625 Type III Hard Anodizing
This part features a 50 μm (0.05 mm) Type III Hard Anodized layer that provides:
✔ Superior wear resistance
Ideal for moving components, rotating assemblies, and motors operating under load.
✔ Thermal barrier protection
Suitable for high-performance motors generating elevated temperatures.
✔ Extended part lifetime
Ensures long-term stability even in abrasive or corrosive environments.
✔ Enhanced professional appearance
A uniform matte grey look that matches industrial-grade components.
Precision Machining Advantages
Every motor housing is manufactured with attention to dimensional consistency and functionality:
- Perfect circularity & concentricity for smooth motor alignment
- Accurate hole positioning for seamless assembly
- High surface flatness for stable motor mounting
- Burr-free machining with full quality inspection
- Support for ±0.01 mm tolerances (upon request)
Application Industries
This motor housing is ideal for:
- Industrial Automation Machinery
- Servo & Stepper Motor Assemblies
- Robotics & Automation Systems
- Smart Manufacturing Equipment
- Precision Instrumentation
- High-Performance Electric Motors
- Custom Engineering Projects
Comparison: Hard Anodized vs. Normal Anodized Motor Housing
|
Parameter
|
Hard Anodized (Type III – 50 µm)
|
Normal Anodized (Type II – 10–20 µm)
|
|
Coating Thickness
|
30–60 µm
|
10–20 µm
|
|
Hardness
|
Extremely high (up to 70 HRC equivalent)
|
Moderate
|
|
Wear Resistance
|
Excellent – suitable for moving parts
|
Good – for general usage
|
|
Corrosion Resistance
|
Very high
|
Medium
|
|
Heat Resistance
|
High
|
Moderate
|
|
Color
|
Darker matte grey
|
Wide color options
|
|
Ideal Use
|
Industrial motors, robotics, heavy-duty parts
|
Consumer parts, light-duty components
|
Why Choose JYH CNC Precision Machining?
- ✔ Reliable On-Demand Manufacturing
- ✔ Fast lead times with competitive pricing
- ✔ ISO-standard machining and inspection process
- ✔ Strong engineering support
- ✔ Flexible customization for any design requirement
Whether you need a single prototype or high-volume production, our experienced team ensures every component meets your performance and quality expectations.
Request Your Custom Motor Housing Today
If your project requires high-precision aluminum parts, custom motor housings, or CNC-machined mechanical components.
JYH CNC Precision Machining is ready to support you.
Contact us with your drawings and specifications for a fast and accurate quotation.
